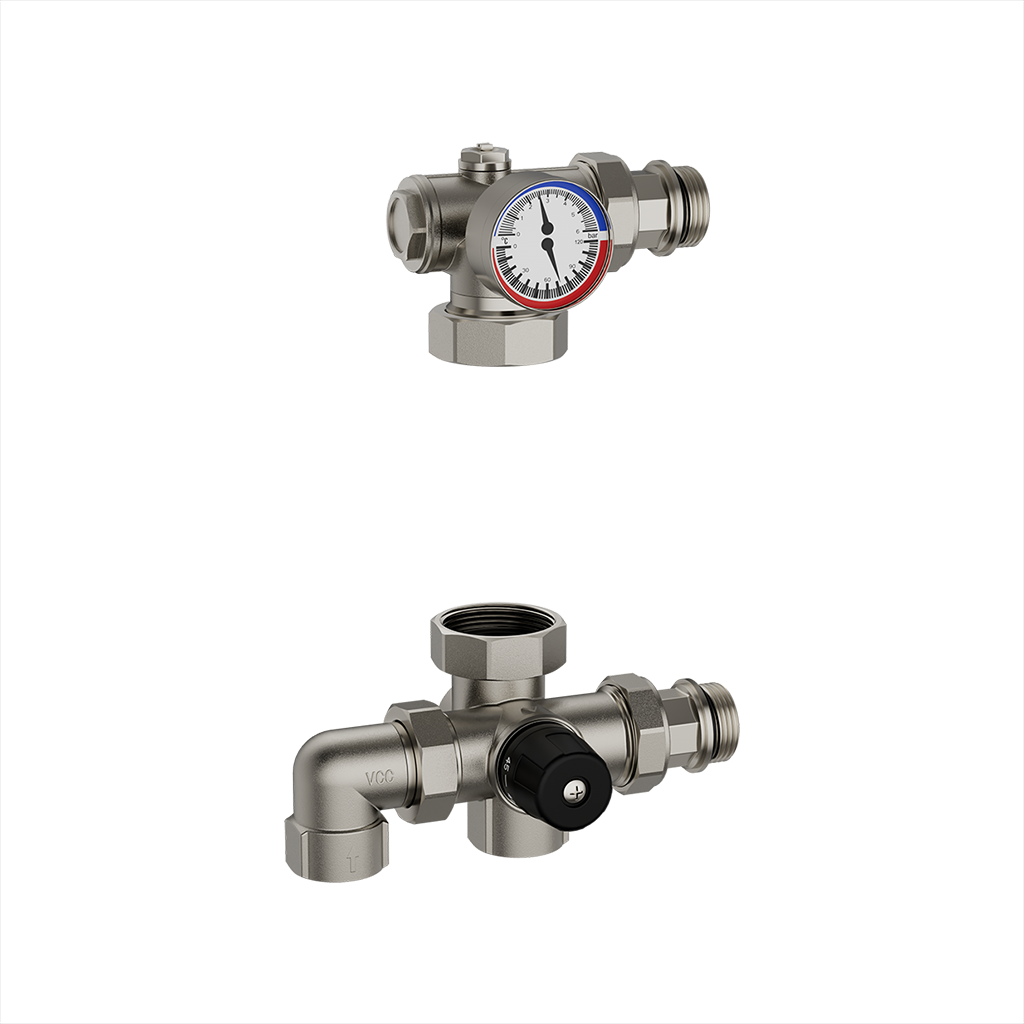

Underfloor Heating System – VHMC001 Water Mixing Center
Regular price
£65.35
Sale price
£65.35
Regular price
Unit price
Tax included.
Underfloor Heating System – VHMC001 Water Mixing Center
Regular price
£65.35
Sale price
£65.35
Regular price
Unit price
Shipping & Return
Product description
Shipping & Return
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
TECHNICAL DATA
| Specification | Value |
|---|---|
| Thermostatic Mixing Valve | M30 × 1.5 Thread |
| Temperature Control Range | 30°C to 60°C |
| Temperature Sensor | Integrated Temperature Probe |
| Valve Connection | G1" Male Thread |
| Circulation Pump Connection | G1½" Thread |
| Pump Installation Length | 130 mm |
| Maximum Pump Head | 6 m |
| Pump Power | 100 W |
| Power Supply | 220–240 V AC, 50 Hz |
| Recommended Heating Area | Up to 200 m² |
| Maximum System Pressure | 1.0 MPa (10 bar) |
PERFORMANCE FEATURES
- Integrated Thermostatic Mixing Valve
- Adjustable Temperature Range (30°C–60°C)
- High-Efficiency Circulation Pump
- Standard 130 mm Pump Installation Length
- Reliable Temperature Control
- Easy Installation and Maintenance
- Durable Brass Valve Construction
- Suitable for Underfloor Heating Systems
- Energy-Efficient Operation
- Long Service Life
KEY BENEFITS
- Provides accurate water temperature control for underfloor heating systems.
- Delivers stable and comfortable heating performance.
- Protects the heating system from excessive water temperatures.
- Compatible with most standard 130 mm circulation pumps.
- Compact, pre-assembled design for quick installation.
- Suitable for residential and light commercial underfloor heating applications.
- Built from high-quality materials for reliable, long-term operation.
